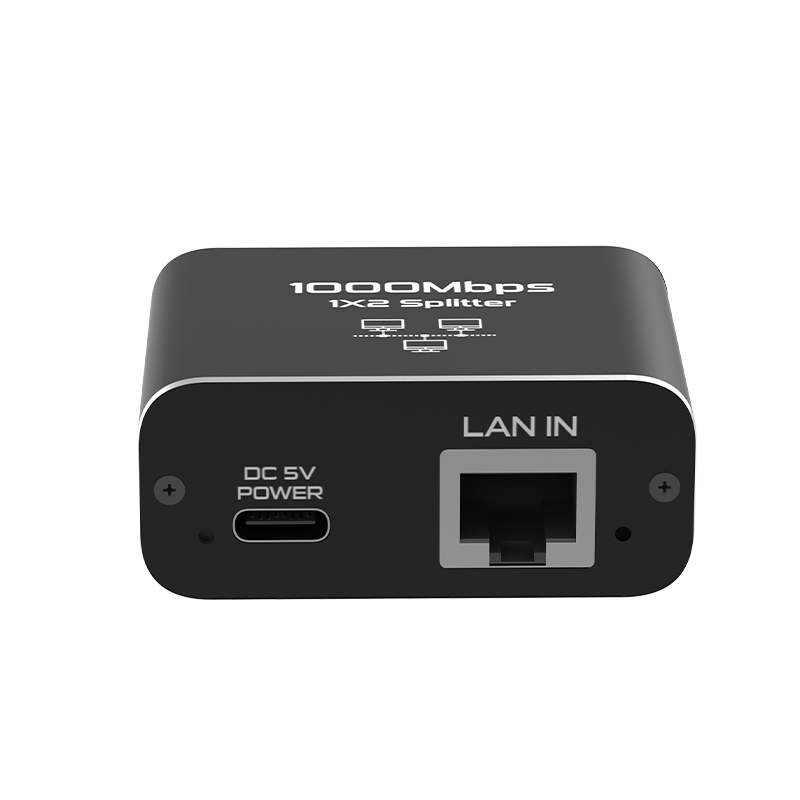

FJ-RJ102 2 Port 1000Mbps Network Splitter

This 1-in-2-out 100/1000Mbps Network Splitter is a high-performance network device that allows a network signal to be split into two output signals, enabling multiple devices to connect to the network simultaneously. The product supports gigabit network transmission speeds, ensuring fast and stable data transfer.

Product Description

Specification

  • Product model: RJ102
  • Transmission rate: 100/1000Mbps
  • Interface type: RJ45 Network Port
  • Power supply: DC 5V/0.5A Max
  • Transmission mode:Distribution transmission
  • Network standard:IEC(60)603-7

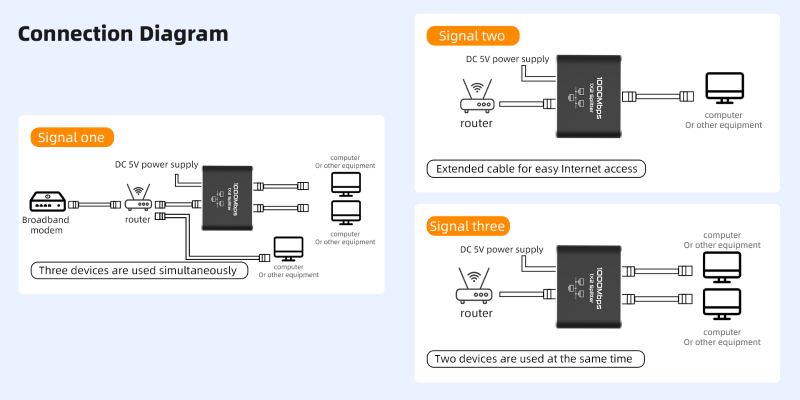

The connection of this product is very simple. First, connect the 5V power input to the power port using the power cable. Next, connect the LAN signal to the LAN IN port, and then connect the LAN cable to the LAN OUT port and to the device you want to connect. This product supports three connection methods, as shown in the diagram.

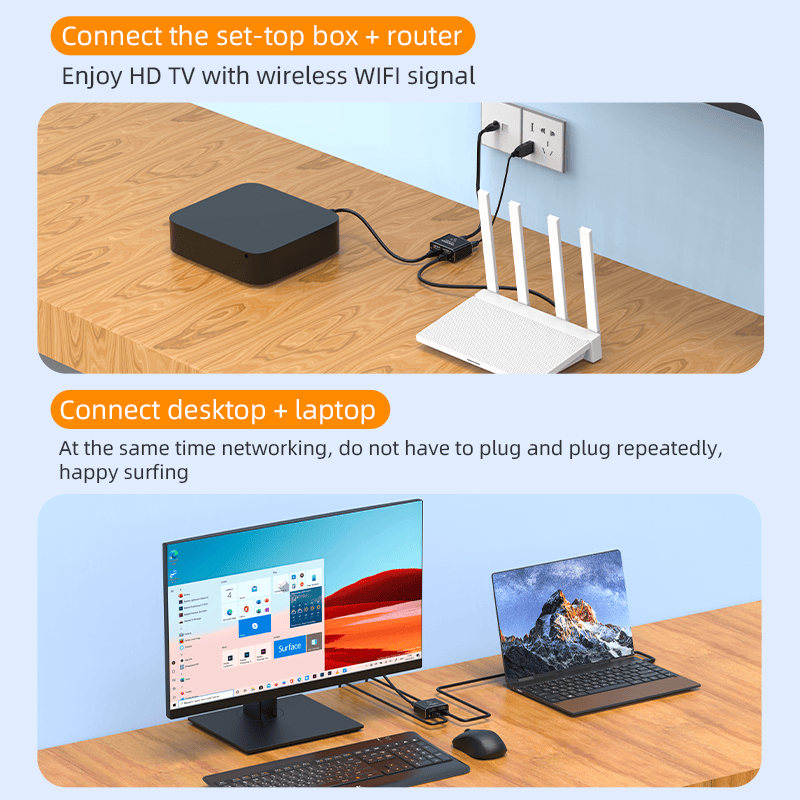

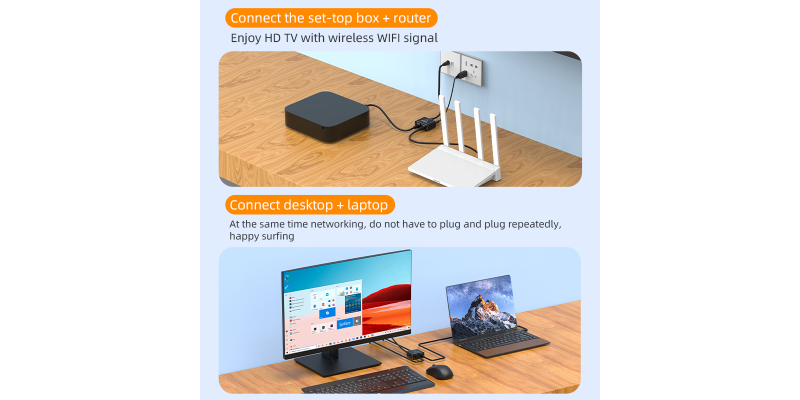

Easy to Set up and Use - plug and play, no external drivers required. This product supports the use of an output set-top box and wireless router, as shown in the upper right picture, to distribute network signals. It also supports two computer devices accessing a stable signal input without the need for frequent plug-and-play, making it very convenient, as shown in the lower right picture.

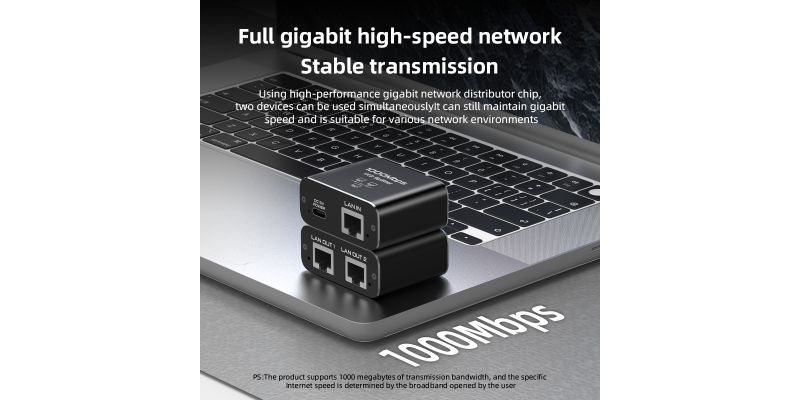

Full gigabit high-speed network with stable transmission. Using a high-performance gigabit network distribution chip, two devices can be used simultaneously. It maintains gigabit speeds and is suitable for various network environments. The product supports a 1000Mbps transmission bandwidth, and the actual internet speed depends on the broadband speed provided by the user.

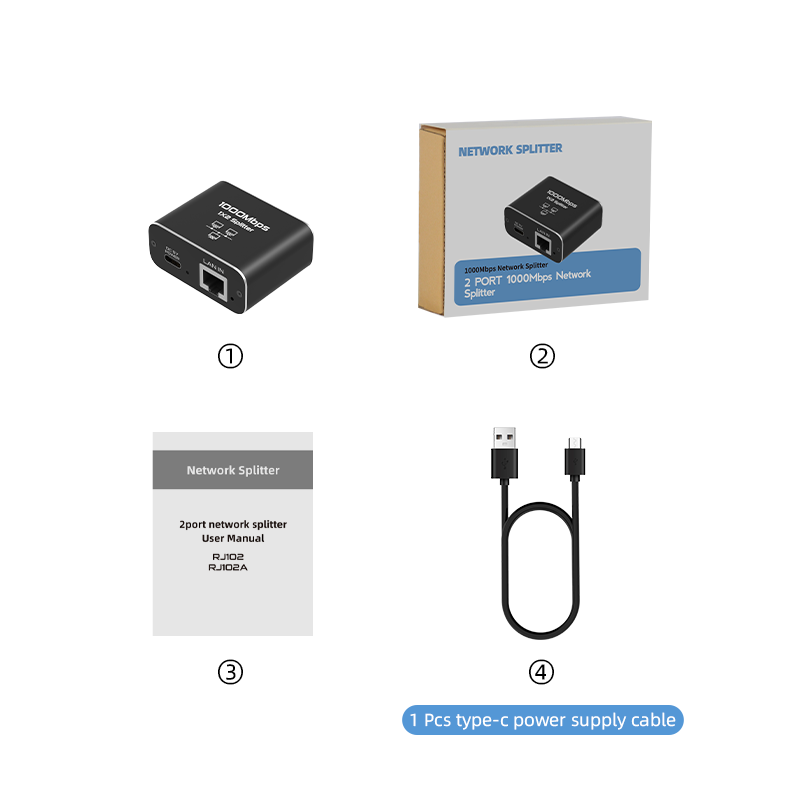

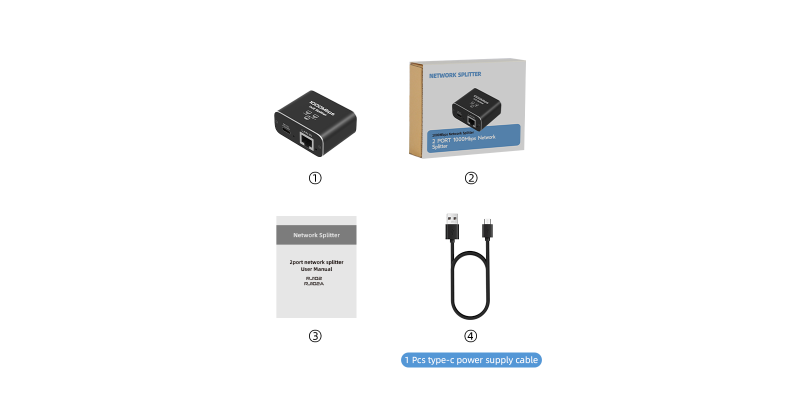

Packing list:
Product ①
Packing box ②
User manual ③
Power supply cable ④
We will provide you with a one year warranty, if you have any questions, feel free to Contact Us!
