HDMI KVM Extender

Home >  Products >  HDMI Series >  HDMI KVM Extender

FJ-HKV150A 150M HDMI KVM Extender

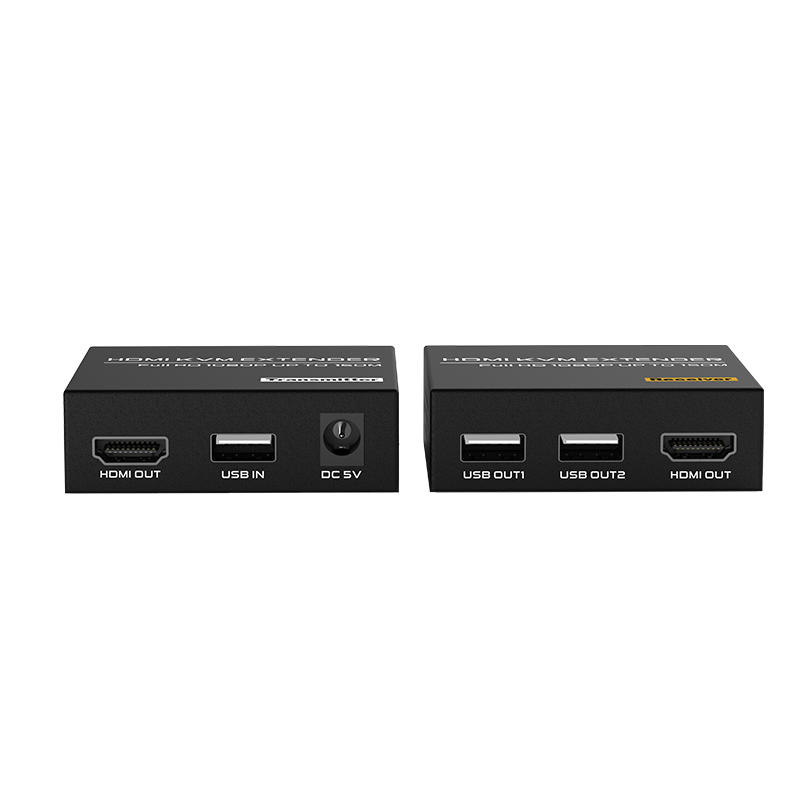

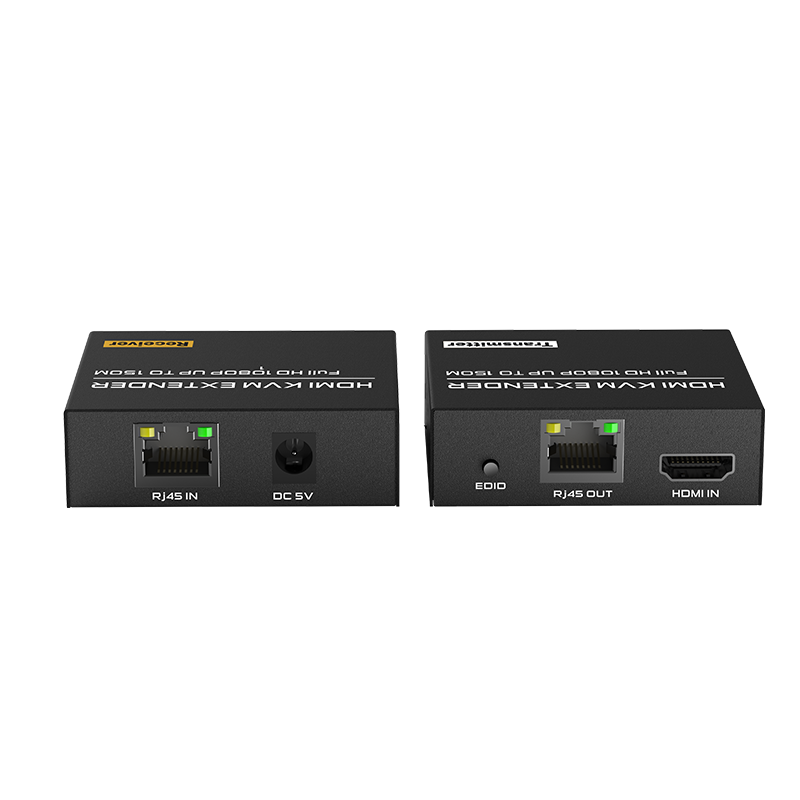

The FJGEAR FJ-HKV150A 150M HDMI KVM Extender is a high-definition HDMI video KVM extender with an infrared return function. Users can extend the video signal up to 150 meters using a network cable, allowing playback within range. The device also supports remote control of the signal source via a keyboard and mouse. The near end features a video loop-out port, providing convenience for users to connect an additional display. The equipment offers fast response speeds, easy installation, low latency, plug-and-play functionality, and many other advantages.

Product Description

Specification

  • Product model: HKV150A
  • Operating Voltage: DC5V/1A
  • Operating Temperature: 20~55 ℃
  • Maximum supported resolution: 1920*1080@60HZ
  • HDMI Version: HDMI1.4
  • USB Version: USB2.0
  • Signal input line: 0~5M
  • Signal output line: 0~5M

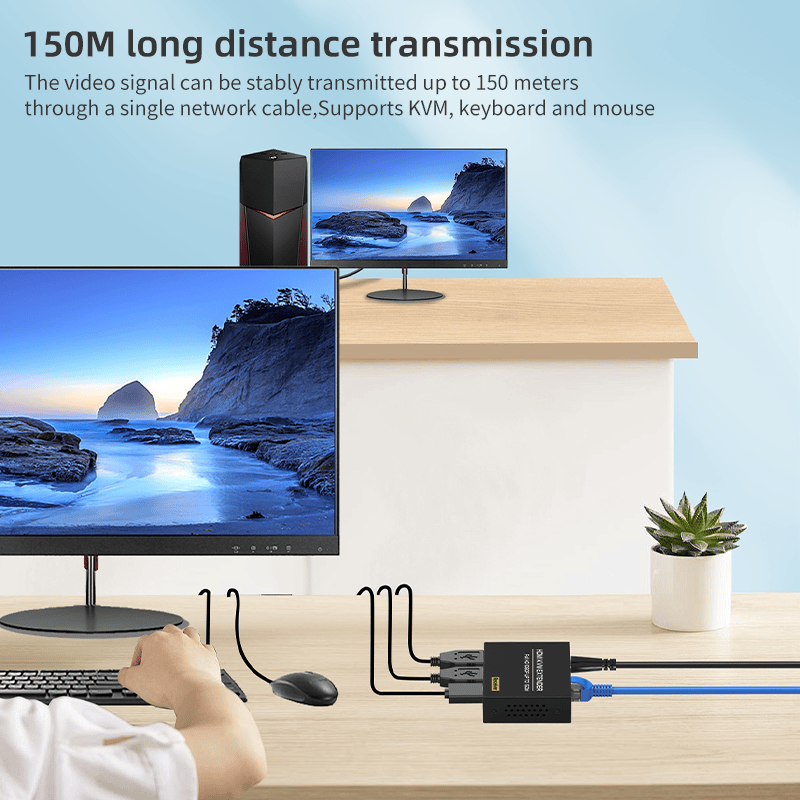

  • Transmission distance: ≤150M
  • HDMI Signal input/output port:19pin HDMI

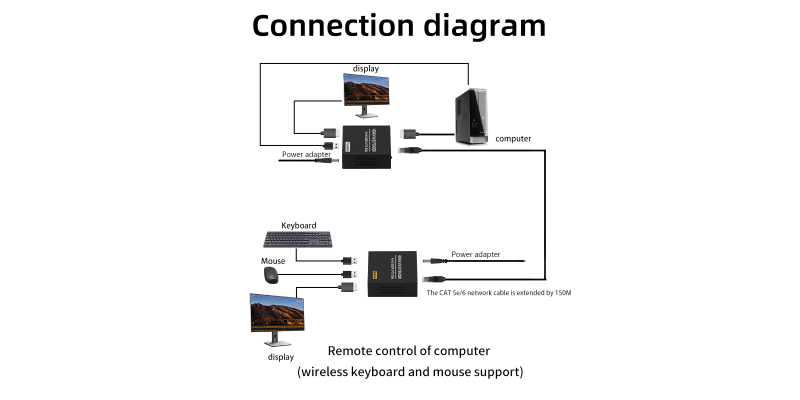

The connection process for this product is very simple. Users simply need to connect the power supply to the device, then connect the signal output device to the input port using a high-quality HDMI cable. Next, connect the transmitter and receiver with Cat5e or higher network cables. Finally, connect the display device to the output port using an HDMI cable and connect the USB port to the KVM device to complete the setup.

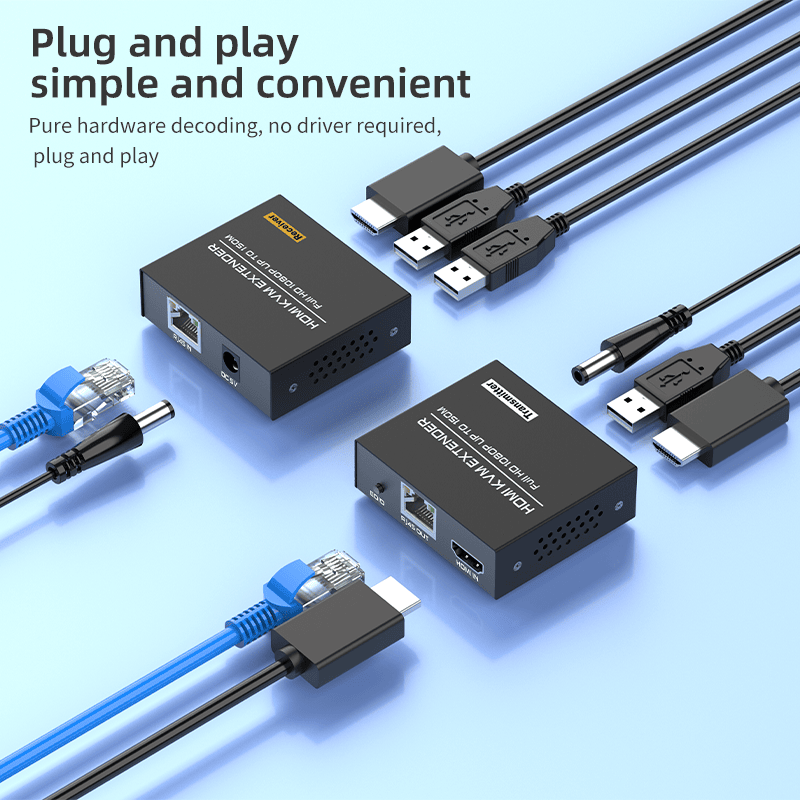

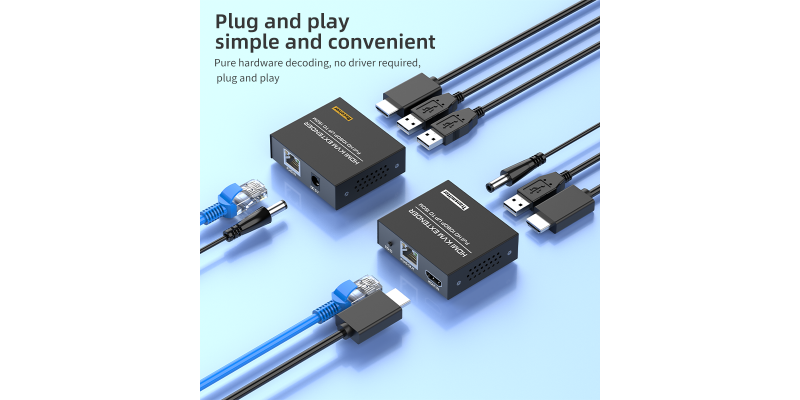

Easy to set up and use – Plug and play, no external drivers required. This product is very simple to use: simply connect the device and signaling equipment using high-quality cables, then connect the power supply and the KVM device to complete the setup. It transmits HDMI audio and video signals stably and without delay, enabling device connections via KVM for a wide range of scenarios.


Easy to set up and use – Plug and play, no external drivers required. This product is very simple to use: just connect the device and signaling equipment using high-quality cables, then connect the power supply and the KVM device to complete the setup. It transmits HDMI audio and video signals stably and without delay, supporting device connections via KVM for various scenarios.

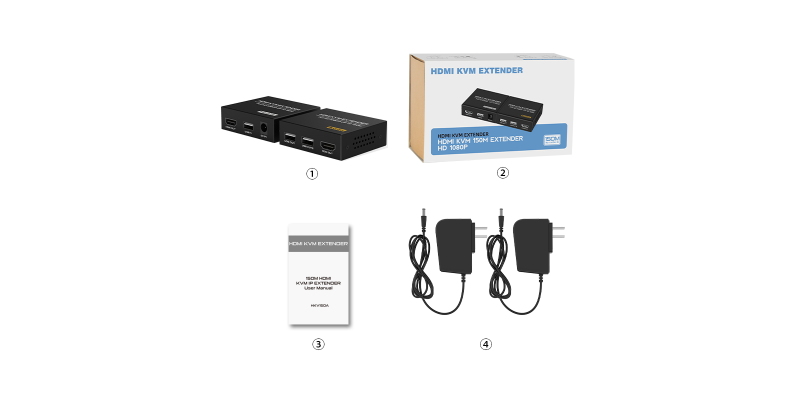

Packing list:
Product ①
Packing box ②
User manual ③
Power adapter ④
We will provide you with a one year warranty, if you have any questions, feel free to Contact Us!
