AV Splitter

Home >  Products >  AV Series >  AV Splitter

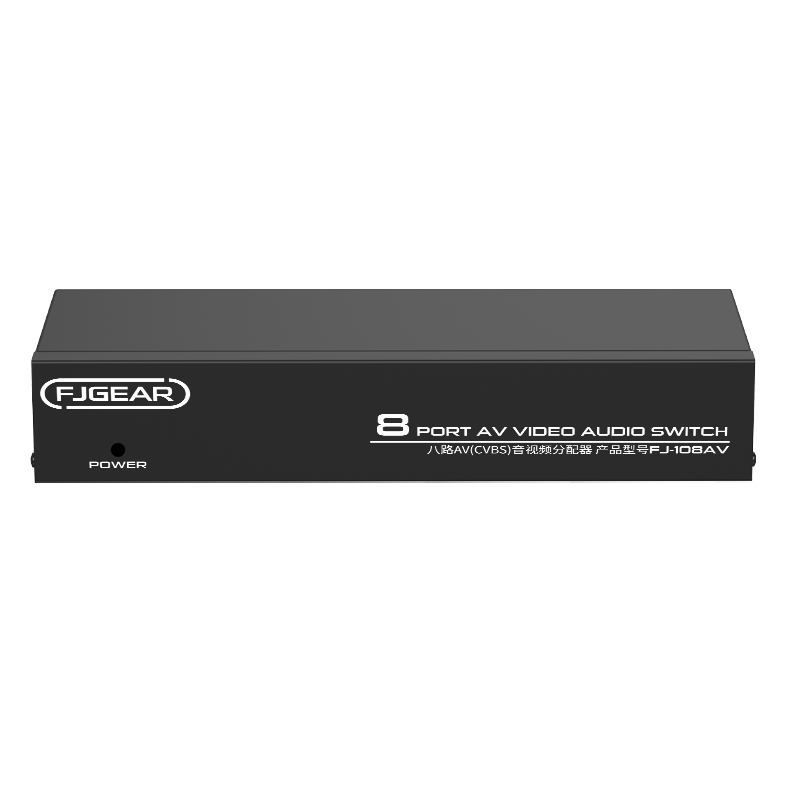

FJ-AV108 8 Port Audio&Video Splitter

The FJGEAR FJ-AV108 8-Port 1-in-8-out Audio & Video Splitter is a high-performance AV (CVBS) device that splits a single AV (CVBS) signal into eight output signals, allowing multiple devices to connect simultaneously. The product supports high-speed AV (CVBS) transmission, ensuring fast and stable data transfer.

Product Description

Specification

  • Product model: AV108
  • Video:
  • Rated input signal level and impedance: VS0.8-1.0Vp-p/75Ω
  • Rated output signal level and impedance: VS0.8-1.4Vp-p/75Ω
  • Band width: 50Hz-5.5MHz
  • Input path number: Route 1
  • Output path Route 8
  • Audio:
  • Rated input signal level and impedance: 2V(RMS)/47KΩ
  • Rated output signal level and impedance: 2V(RMS)/1KΩ
  • Frequency characteristic:10Hz-20KHz, 0dB
  • Input path number: Route 1
  • Output path Route 8

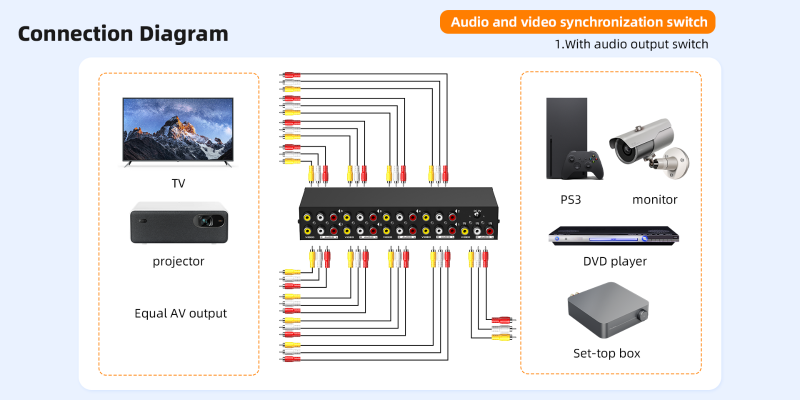

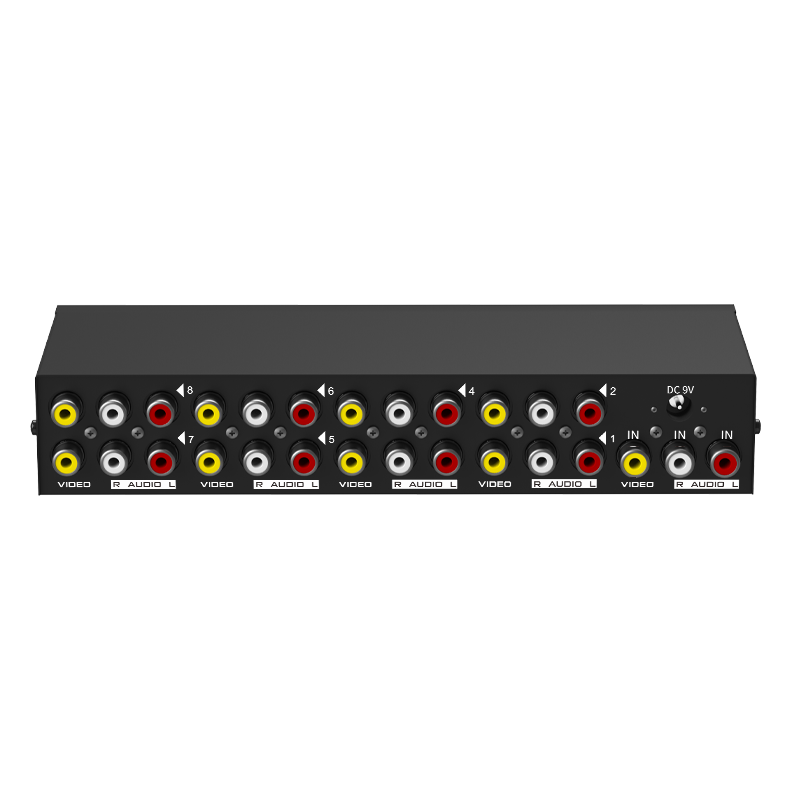

This product is very easy to connect, the power supply into the machine, and then use high-quality AV (CVBS) cable to connect the signal output device to the machine input port, and then connect the cable to the display device to the output port of the machine, you can complete the connection of the equipment and the machine to use.

Easy to Set up and Use - plug and play, no external drivers required. This product is very easy to usesimply connect the machine and signaling equipment using high-quality cables, and then connect it to a power supply. It provides stable transmission of AV signal images and is suitable for a wide range of scenarios, such as offline store displays, surveillance rooms, multimedia classrooms, business meeting rooms, and Home audio-visual setups.

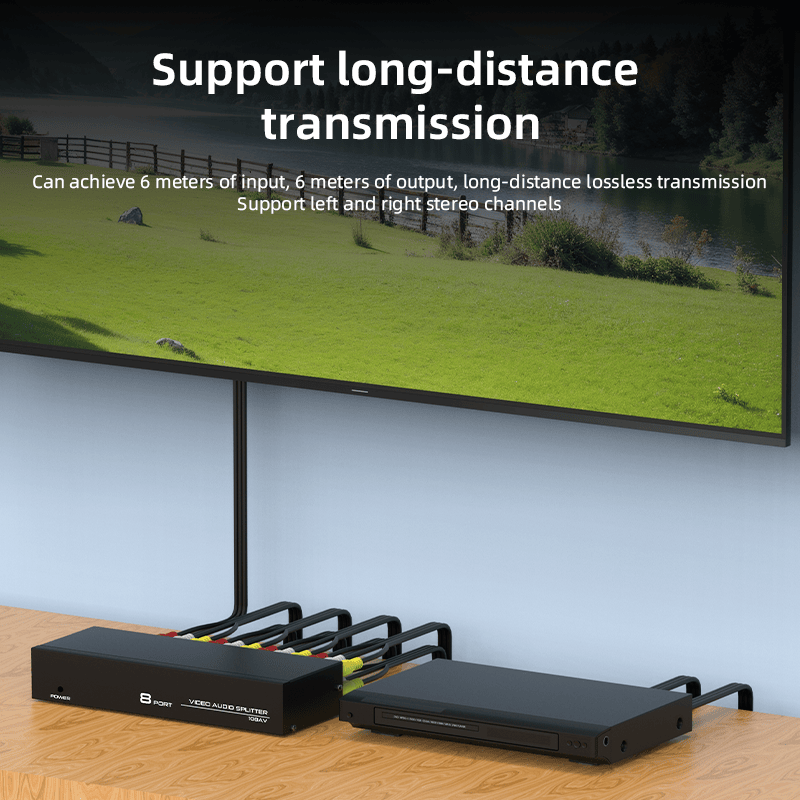

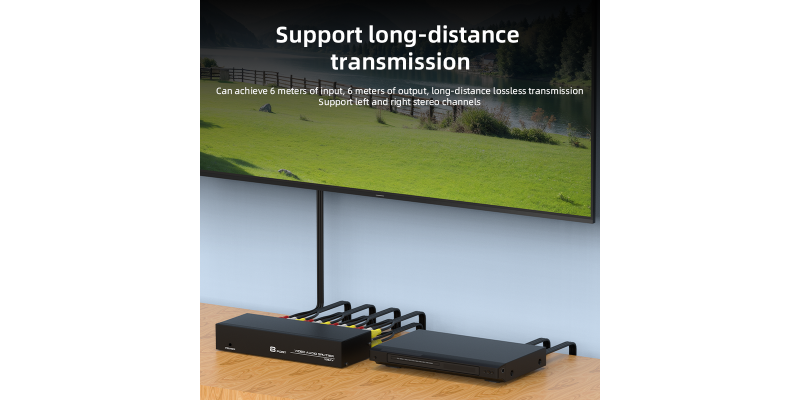

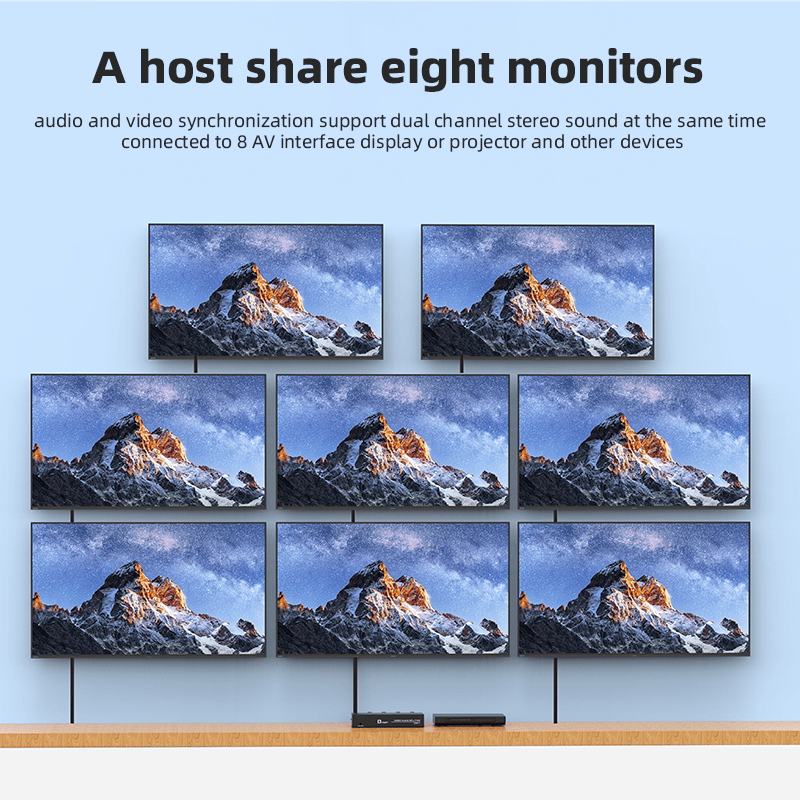

This product enables users to output a single device's signal to up to 8 display devices via AV, supporting resolutions up to 1920x1080, a bandwidth range of 50Hz-5.5MHz, and a transmission distance of up to 6 meters.

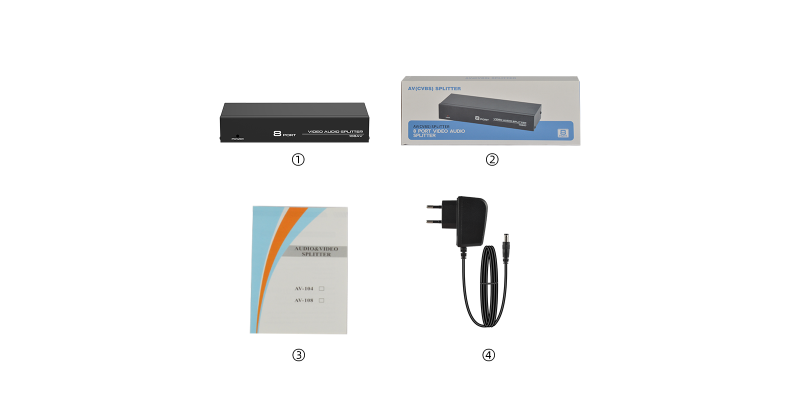

Packing list:
Product ①
Packing box ②
User manual ③
Power adapter ④
We will provide you with a one year warranty, if you have any questions, feel free to Contact Us!
